ITEM DESCRIPTION
Output
Output power capacity: 2.1 KWatts / 3.0 kVA
Max Configurable Power (Watts): 2.1 KWatts / 3.0 kVA
Nominal Output Voltage: 230V
Output Voltage Distortion: Less than 5%
Output Frequency (sync to mains): 50 Hz
Topology: Line Interactive
Waveform type: Sine wave

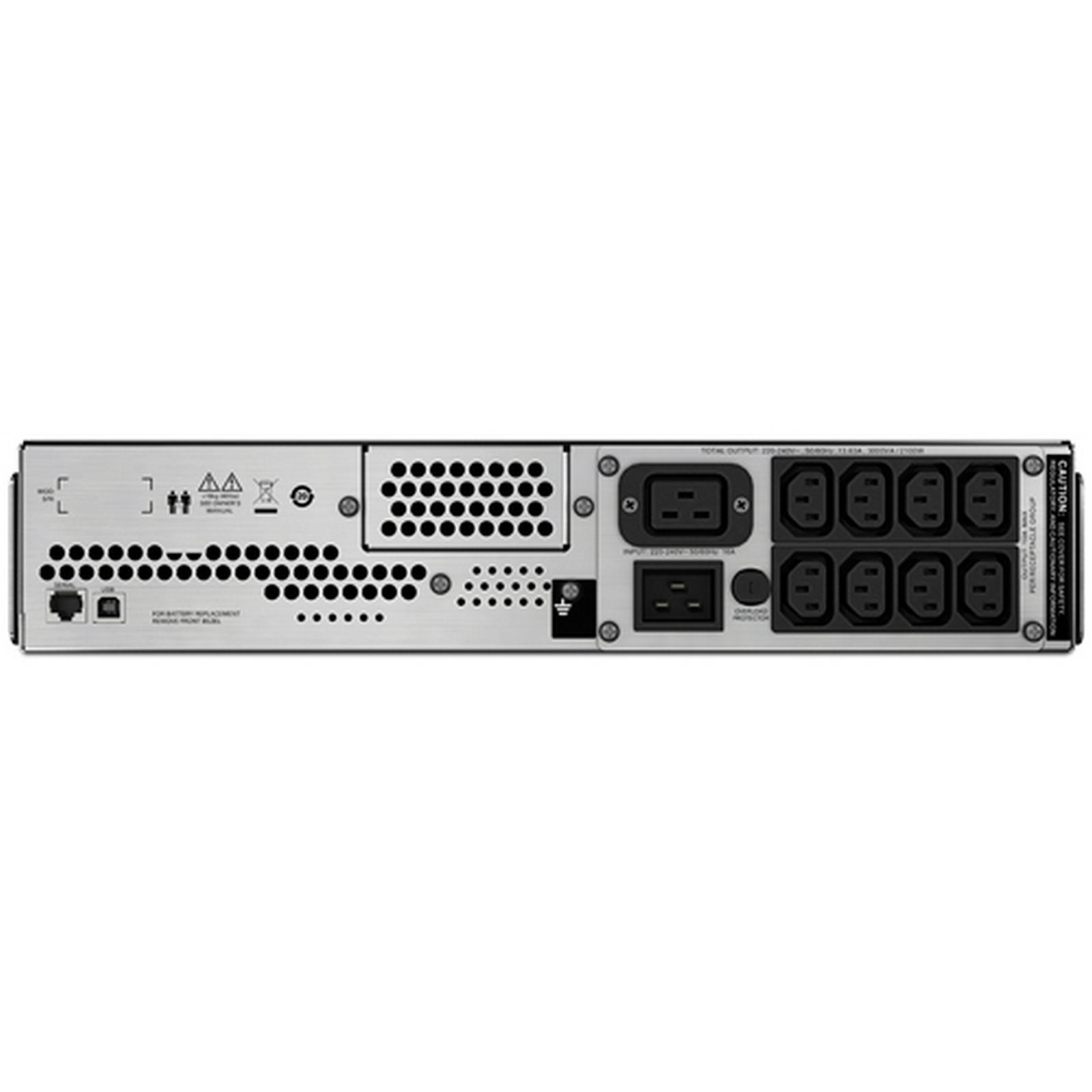

Output Connections: (1) IEC 320 C19 (Battery Backup), (8) IEC 320 C13 (Battery Backup)
Transfer Time: 8ms typical : 10 ms maximum

Input
Nominal Input Voltage: 230V
Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: IEC-320 C20
Input voltage range for main operations: 180 - 287 V
Number of Power Cords: 1

Battery
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 3 hour(s)
Replacement Battery: APCRBC151
Replacement Battery: APCRBC151
RBC Quantity: 1
Battery Volt-Amp-Hour Capacity: 490

Communication
Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays

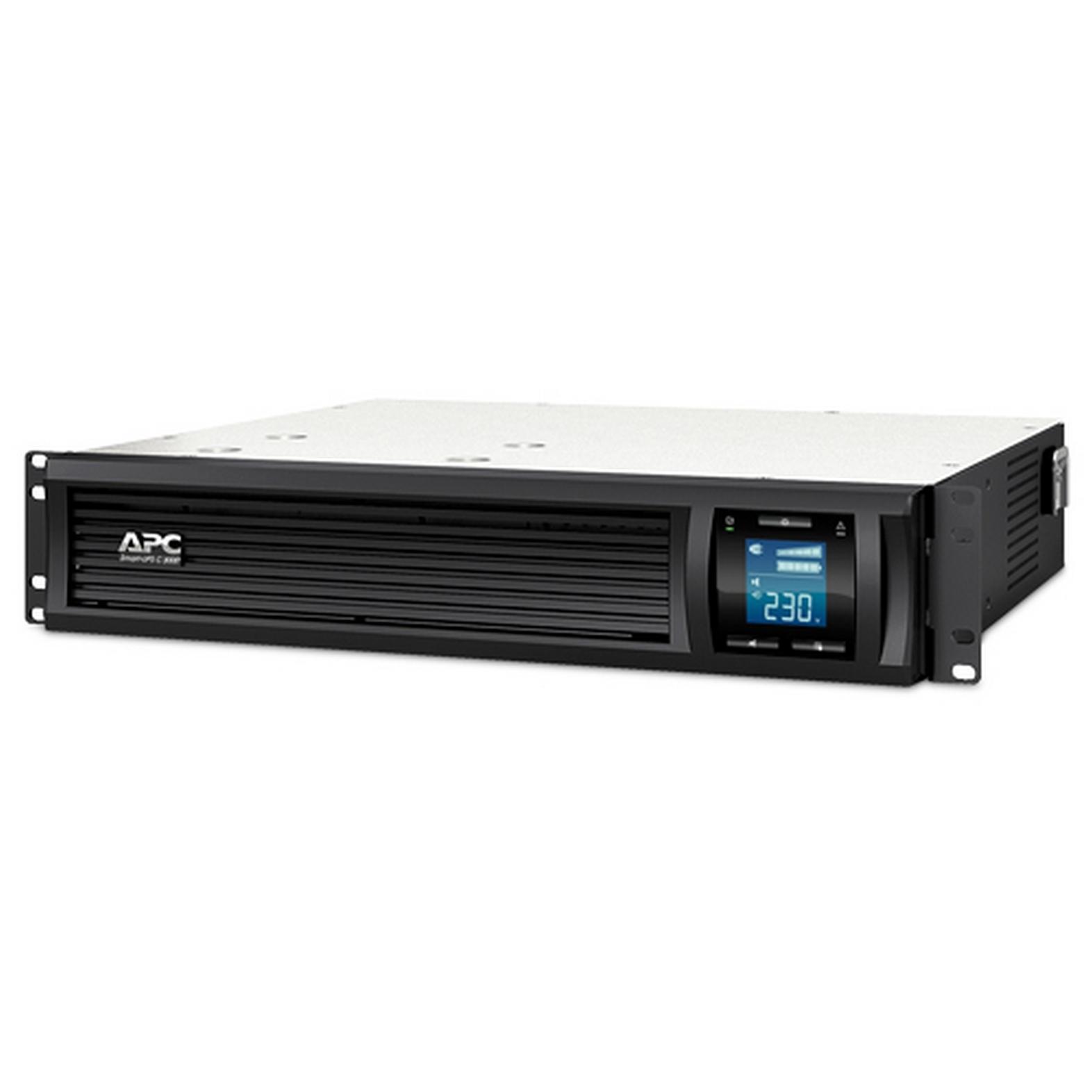

Control panel : Multi-function LCD status and control console
Emergency Power Off (EPO) : --
Interface Port(s) : USB

Runtime
Output power capacity : 2.1 KWatts / 3.0 kVA

Surge Protection and Filtering
Surge energy rating: 300 Joules
Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical
Maximum Height: 89 mm , 8.9 CM
Maximum Width: 480 mm , 48.0 CM
Maximum Depth: 670 mm , 67.0 CM
Rack Height: 2 U
Net Weight: 41.2 KG
Shipping weight: 50.9 KG
Shipping Height: 254 mm , 25.4 CM
Shipping Width: 600 mm , 60.0 CM
Shipping Depth: 980 mm , 98.0 CM
Color Black Units per Pallet: 16.0
